References

Industry

Project description

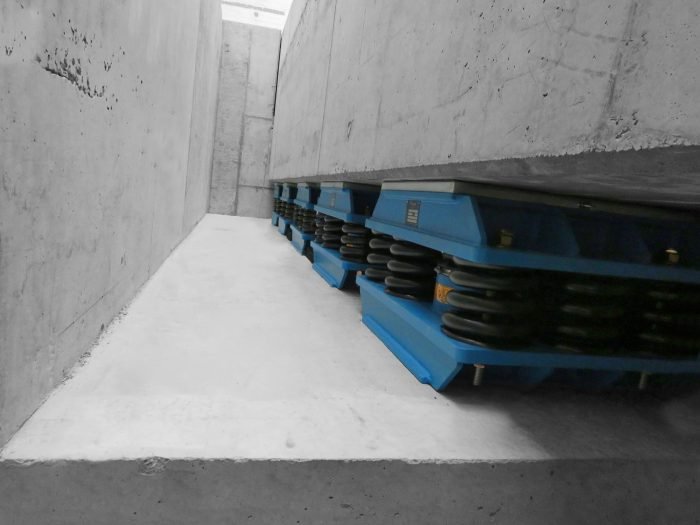

Receiver isolation by vibration-insulated installation of a high-precision portal milling machine with a total mass incl. reinforced concrete foundation of approx. 650 t. Protection of the milling machine against vibrations from the adjacent press shop to ensure machining accuracy of the milling machine. Limitation of horizontal movements by horizontal buffer.

Solution

Delivery and installation of 20 VICODA spring elements with max. load capacity of 370 kN and 4 horizontal buffers. Vertical tuning frequency of the setup of approx. 2.9 Hz and damping factor of > 20%.

Project data

ProductSpring elements S-WPV, horizontal buffer VMBriefVibration-isolated installation of a high-precision portal milling machineDelivery date2017CountryDEObjectHigh-precision portal milling machine on reinforced concrete foundation

Project description

Limitation of vibration amplitudes and ground forces by vibration-isolated installation of a centrifugal fan with a weight of approx. 13t. In previous elastic installation, large horizontal movements occurred during operation due to resonance in the horizontal direction. Strong corrosion of existing spring elements.

Solution

Replacement with 11 VICODA spring elements with special coating for highly corrosive medium. Vertical tuning frequency of the setup approx. 7 Hz, degree of isolation 55%. Reduction of vibrating movements due to increased horizontal rigidity.

Project data

ProductSpring elements S-ULPBriefVibration isolation of a fan, dynamic foot forcesDelivery date2017CountryHUObjectCentrifugal fan in fertilizer factory

Project description

Vibration reduction through vibration-isolated installation of a medal press with a total weight of approx. 10 t and 80 strokes/min. The damping was to be chosen so that the press is at rest before the next lifting process, so as not to interfere with the production process.

Solution

Delivery of 4 spring elements with integrated damping > 10% and a load capacity of max. 130 kN (29,225.16 lbf). Vertical tuning frequency approx. 7 Hz

Project data

ProductSpring elements MPDBriefVibration-isolated installation of a medal press.Delivery date2016CountryDEObjectMedal press

Project description

Vibration reduction through vibration-isolated installation of a toggle press with a total mass of approx. 225 t and 25 strokes/min. The damping was to be chosen so that the press is at rest before the next lifting process, so as not to interfere with the production process.

Solution

Delivery of 4 spring elements with integrated damping of approx. 10% and a vertical tuning frequency of 4.2 Hz and a load capacity of 650 kN (146,13 lbf) per spring element.

Project data

ProductSpring elements PHDBriefVibration-isolated installation of a toggle pressDelivery date2006CountryDEObjectKniehebelpresse

Project description

Limitation of the dynamic forces applied to the ground by vibration-isolated installation of a gas engine with generator with a total mass of approx. 106t. In addition to vibration isolation of the operating loads, earthquake requirements were also taken into account in the design of the spring elements and dampers.

Solution

Delivery of 10 spring elements with a damping degree of 11% and a load capacity of max. 147 kN (33,046.91 lbf)per spring element. Vertical tuning frequency of the setup of approx. 2.6 Hz, degree of isolation 90%.

Project data

ProductSpring elements SL and SHBriefVibration-isolated installation of a gas engineDelivery date2016CountryJPObjectGas engine with generator on steel frame

Project description

Reduction of operating vibration amplitudes by a factor of 6 on a condensation line by installing viscoelastic dampers. Fatigue cracks were already evident on the weld seams due to impermissible operating amplitudes.

Solution

Vibration measurement and selection of suitable viscoelastic damper. Design and manufacture of the bearing steel construction. Vibration reduction by a factor of 6.

Project data

ProductViscoelastic damper type VDBriefDamping of a condensation lineDelivery date2016CountryDEObjectCondensation line in a CHP

Project description

Vibration reduction through a TMD with an efficiency of 22 dB in a temperature range of -7 °C to + 55 °C. Significant vibrations on an aftercooling line of a compressor (DN250).

Solution

Installation of Pipe TMDs with a mass of 350 kg (771.62 lbs), a natural frequency of 6.4 Hz (5.9 Hz) and a damping of 20% of the critical damping. The vibration amplitude is ± 9 mm (0.35").

Project data

ProductPipe TMDBriefPassive absorbing of a compressor aftercooling lineDelivery date2015CountryAUObjectAftercooling line of a compressor in a chemical plant

Project description

Reduction of vibration velocities through active absorption on the pipeline. Process-induced vibration excitation by the rising medium in the pipe, which meets at the top end of a double 45° deflection.

Solution

Installation of an active tuned mass damper with a total mass of 147 kg (324.08 lbs) and a frequency range of 1–200 Hz.

Project data

ProductPipe ADDBriefActive absorption of a pipelineDelivery date2014CountryDEObjectPipeline in a chemical plant

Project description

Vibration-isolated mounting of a turbine deck with a total static weight of approx. 6390 t for a 910 MW steam turbine.

Solution

Use of a total of 36 steel spring elements of the GT series with a single load capacity of up to 2158 kN.

Project data

ProductSteel spring elements type GTBriefVibration-isolated installation of a turbineDelivery date2015CountryPLObjectSupport of a turbine deck

Project description

Vibration isolated installation up of an induced draft fan with a total static mass of approx. 500 t.

Solution

Installation of 28 steel spring elements, some with integrated high-viscosity damping of the GI/GID series with a single load capacity of up to 412 kN (92621.28 lbf). To do this, the foundation without fan had to be raised by approx. 50 mm (1.97"), using a total of 8 hydraulic cylinders, and then lowered again after installation of the steel spring elements.

Project data

ProductSteel spring elements type GI/GIDBriefVibration-isolated installation of an induced draft fanDelivery date2009CountryDEObjectSupport of an induced draft fan

Project description

An above-ground urban railway line was built directly above a subway station below ground. Preliminary studies showed that waiting passengers at the subway station were disturbed by aboveground urban railway trains passing due to the considerable rumbling noise.

Solution

In order to reduce structure-borne noise to an acceptable level, a fully embedded spring-mass system was installed on the above-ground urban railway line.

Project data

ProductSub-ballast mat USM® 2020 from CalenbergBriefVibration and structure-borne sound insulationDelivery date2017CountryDEObjectRailway triangle junction and underground stop

Project description

Implementing a spring-mass system on an elevated track to protect the residents from shocks and structure-borne noise.

Solution

The concrete track-supporting slab was elastically supported on 3190 m² (34,336.87 sq ft) USM® 2025 arranged in strips and 1360 m² USM® 1000 W.

Project data

ProductSub-ballast mats USM® 2025, USM® 1000 W from CalenbergBriefNoise and vibration protectionDelivery date2010 - 2012CountryTWObjectSpeed rail link

Project description

To ensure emission protection for residents above a railway tunnel, spring-mass systems were installed on strips and surface bearings.

Solution

The 5520 m² (59,416.78 sq ft) USM® 1000 W, USM® 2020 and USM® 4010 ballast mats supplied ensure that the protective effect of the spring-mass systems lasts effectively and over a long period of time.

Project data

ProductSub-ballast mats USM® 1000 W, USM® 2020 and USM® 4010 from CalenbergBriefNoise and vibration protectionDelivery date2012CountryCHObjectRailway tunnel

Project description

Implementing spring-mass systems on highly elastic conical stud mats to protect residents from shocks and structure-borne noise.

Solution

Installation of track-bed mats on bridges as well as in tunnel sections in sensitive urban areas and effective protection residents and their homes against noise or shock during train passes.

Project data

ProductSub-ballast mats USM® 1000 W, USM® 2020 and USM® 3000 from CalenbergBriefNoise and vibration protectionDelivery date2001CountryBRObjectMetro line

Project description

Further infrastructure measures in the Hanseatic city of Bremen in connection with a new tram line necessitated replacement of the bridge in Heinrich-Plett-Allee.

Solution

Delivery and installation of a special construction by Schreiber. The design takes into account the track layout of the tram line and the noise reduction of the traffic. The entire construction was designed, delivered and installed with a length of 32.0 m.

Project data

ProductVS-JSR with movement in bridge longitudinal direction of 20 mm and transverse movement of 10 mm (0.39"), including design of the construction for traversing the tracks for the new suburban railway by SchreiberBriefAbsorption of linear expansion due to temperature changes and trafficDelivery date2017CountryDEObjectHeinrich-Plett-Allee in Bremen, BW 442

Project description

As part of the general refurbishment of the B27 over the Aichtal near Stuttgart, roller shutter joints were redeveloped in both directions. The construction dating back to 1970 was greatly stressed by the increasing traffic. This caused the use of the construction to be at risk.

Solution

Overhaul of the entire construction by Schreiber. Refurbishment of the girders in the bridge as well as installation of new sliding systems.

Project data

ProductRoller shutter joint with movement of 750 mm (29.53") in the longitudinal direction of the bridge, slip resistance on all steel plates with epoxy resin from SchreiberBriefAbsorption of linear expansion due to temperature changes and trafficDelivery date2006CountryDEObjectBundesstraße B27, Aichtal bridge

Project description

During renovation of the border bridge over the Moselle between Germany and Luxembourg, the two joint systems were replaced after the end of their useful life.

Solution

Expansion of the entire construction by Schreiber as well as delivery and installation of the new steel substructure and VS-Flex mats.

Project data

ProductVS-Flex with movement of 250 mm (9.84") in the longitudinal direction of the bridge and transverse movement of 20 mm (0.79"), steel construction as support surface by SchreiberBriefAbsorption of linear expansion due to temperature changes and trafficDelivery date2016CountryDEObjectBundesstraße B406, border bridge between Germany and Luxembourg

Project description

During refurbishment of the B9 in Koblenz city center, a special expansion joint was designed to reduce noise. The construction, dating back to 1970, was greatly stressed by the increasing traffic and needed replacing due to the very loud noise from traffic passing overhead

Solution

Conception of a construction with very low noise from traffic passing overhead, as well as proven watertightness with a very long service life.

Project data

ProductWave Silent with movement of 80 mm (3.15") in the longitudinal direction of the bridge by Schreiber.BriefAbsorption of linear expansion due to temperature changes and trafficDelivery date2014CountryDEObjectBundesstraße B9, Koblenz

Project description

The REDI shopping center is currently being built with direct access to the underground. It will open in 2018 and is considered the largest shopping center in Helsinki’s city center.

Solution

The planar slab constructions rest on Calenberg Civalit® slide bearings. The deformations that occur are absorbed during setting of the concrete with low friction and the loads applied centrically to the adjacent components. Calenberg Ciparall® slide bearings are used in the area of point bearings. The low friction values allow an intricate, cost-effective construction.

Project data

ProductCivalit® slide bearings from CalenbergBriefAbsorption of displacement movementsDelivery date2016CountryFIObjectShopping center

Project description

Parking garage with an area of 50,000 m² (538,195.52 sq ft) and 2000 parking spaces. High loads and large rotations are the challenge in this project.

Solution

The loads and large rotations are absorbed by the Calenberg Compact Bearing CR 2000. The displacements occurring on the floating bearing are transferred according to plan by Calenberg Perforated™ slide bearings. The low friction value of a maximum of 2.3% allows an intricate execution of the prefabricated construction.

Project data

ProductCompact bearings CR 2000, Perforated™ slide bearings from CalenbergBriefAbsorption of loads and large rotationsDelivery date2012CountryNLObjectParking garage

Project description

The largest passive housing estate in Europe is currently being built in the Aspanggründe/Eurogate urban development area in Vienna.

Solution

The foundations are decoupled with Calenberg Cibatur® mats to protect the buildings from vibrations from rail traffic. Because of the stratum water in situ, only an elastomer that does not absorb water can be used.

Project data

ProductProfiled Cibatur® mat from CalenbergBriefProtection against shocksDelivery date2012CountryATObject“Aspanggründe/Eurogate” passive housing estate

Project description

To protect against vibrations and structure-borne noise from suburban rail and tram traffic, it was necessary to provide various residential buildings near the Nordbahnhof with elastic building bearings.

Solution

The elastic bearings were made by designing point- and strip-shaped Cipremont® and Cibatur® structural supports. These elements were placed between the base and foundation slabs of the buildings. The vertical decoupling of the building areas near the traffic was carried out by Civerso. Ciflamon and Cidista were used as filling and covering materials for the elastic bearing joints.

Project data

ProductCipremont® and Cibatur® from CalenbergBriefProtection against vibrations and structure-borne soundDelivery date2014CountryDEObject“Am Nordbahnhof” residential complex

Project description

On the approximately 150 m (492,14 ft) long property in Ezmattenweg in Bad Krozingen, in the immediate vicinity of the Hamburg-Basel railway line, 17 detached houses are being built. Measurements on site showed that a two-layer, strip-shaped laying of the Cibatur mats is required to achieve the high protection goals.

Solution

Because of the low load, full-surface installation could be dispensed with. Underneath the foundations, Cibatur® was laid in 2-ply 50 cm (19.69") -wide strips to ensure a high level of isolation. Vertical decoupling was done with Civerso.

Project data

ProductProfiled Cibatur® mat from CalenbergBriefProtection against shocksDelivery date2016CountryDEObject“Ezmattenweg” residential complex

Project description

On May 23, 2017, the Welfengarten foundation stone ceremony took place in Munich. Privately financed and subsidized rental housing units covering 18,900 m² (203,437.90 sq ft) are being built on the former brewery site. The Munich-Rosenheim railway line runs right next to the building. On-site measurements led to the conclusion that the buildings facing the railway line had to be protected against vibrations.

Solution

Installing elastic support under the floor slab with the Calenberg Cibatur mat effectively removed this problem.

Project data

ProductProfiled Cibatur® mat from CalenbergBriefProtection against shocksDelivery date2017CountryDEObject“Welfengarten” residential complex
